The 8-Bit Machine
A general-purpose 8-bit machine designer. Pick a CPU, add components, wire them into the address space — all at runtime, with a live debugger watching every cycle.
View on GitHub
A general-purpose 8-bit machine designer. Pick a CPU, add components, wire them into the address space — all at runtime, with a live debugger watching every cycle.
View on GitHub// IN ACTION

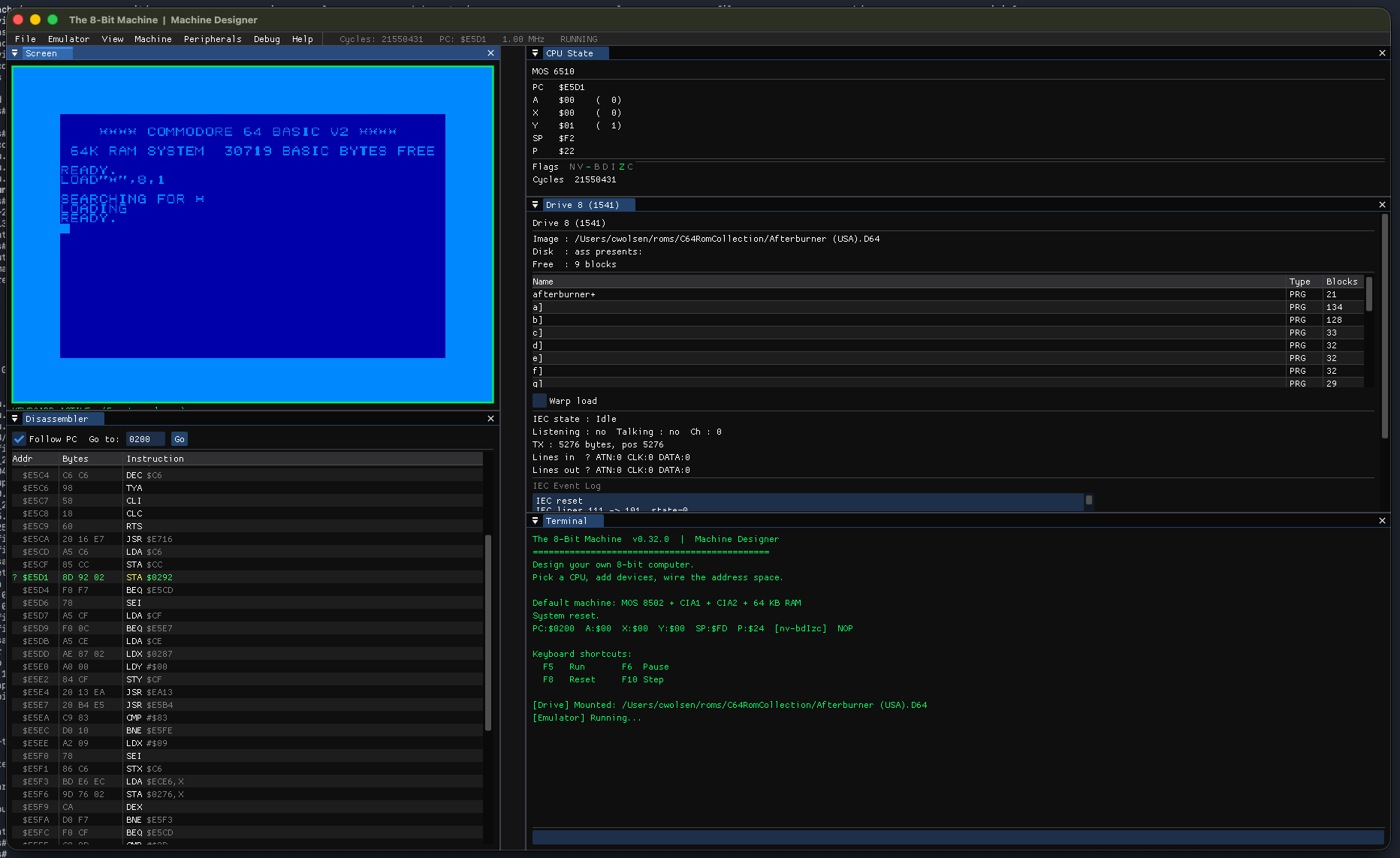

C64 running Afterburner — CPU State, 1541 Drive, Disassembler, and Terminal all docked

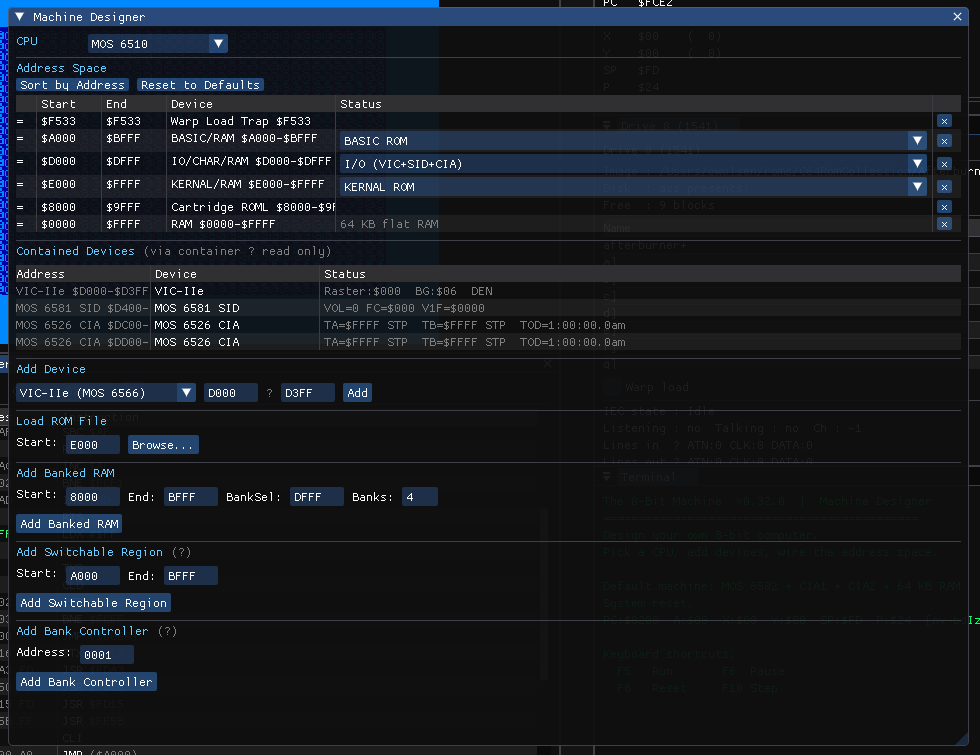

Machine Designer — live C64 address map with VIC, SID, and CIA contained devices, banked RAM, and switchable regions
// FEATURES
Build your machine at runtime. Add devices, map them into the address space, drag to reorder bus priority — no recompile needed.
MOS 8502, MOS 6510, WDC 65C02, and Zilog Z80 — all selectable live. Cycle-accurate timing, IRQ/NMI, and full instruction sets.
Disassembler with breakpoints, hex memory viewer, CPU state panel, watchpoints, and per-device debug panels — all dockable.
Full MOS 6581/8580 SID emulation — triangle, sawtooth, pulse, and noise waveforms with ADSR envelopes and SDL audio output.
New CPUs and bus devices drop in by implementing a simple interface. Machine configs save and load as JSON.
Builds on macOS, Linux, and Windows. SDL2 + Dear ImGui docking UI. C++17, CMake, no mandatory dependencies beyond SDL2.
// BUNDLED PRESETS
// ROADMAP
// COMMUNITY
Join the server to follow development, share machines, and get help.
// GET INVOLVED
Add a new CPU, implement a bus device, or fix a bug. New chips just
implement ICPU or
IBusDevice — no core changes needed.
The easiest way to support the project. Star it on GitHub, share it with retro computing communities, and spread the word.
